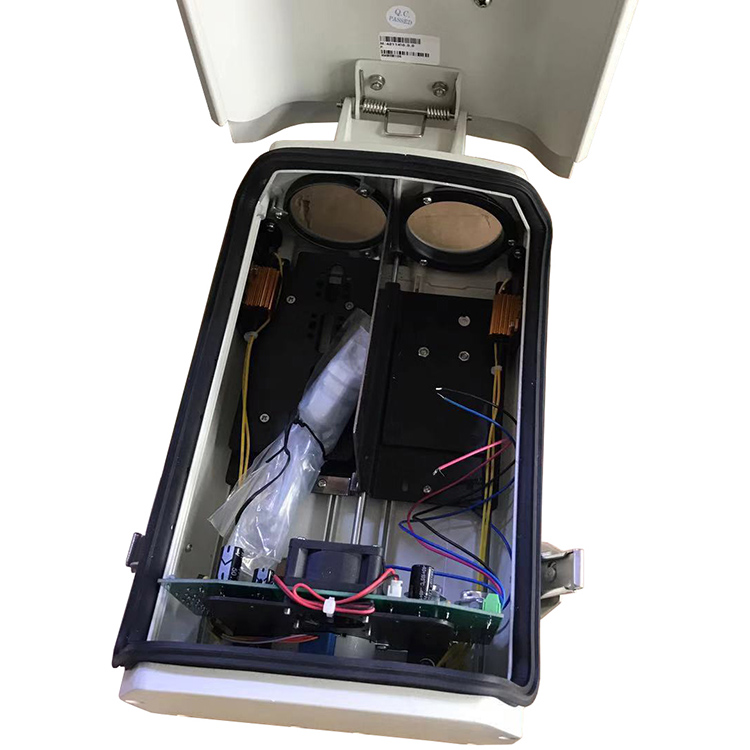

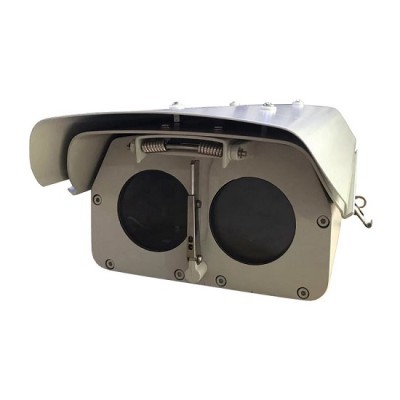

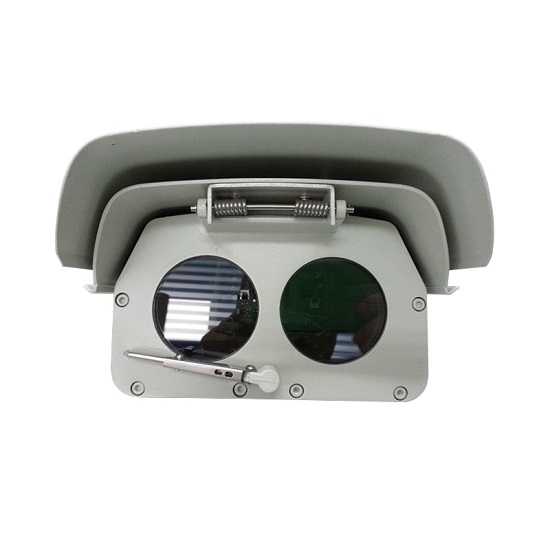

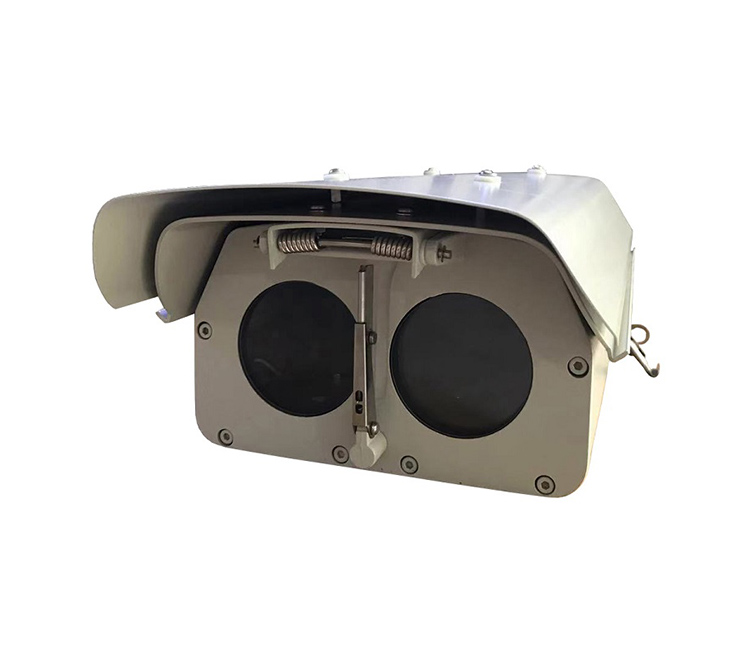

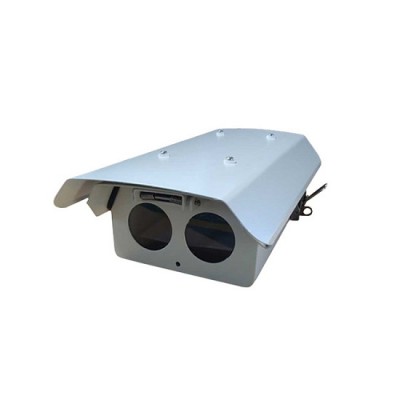

Product name : Aluminum Alloy Road Monitoring Laser Lamp CCTV Surveillance Camera Double Tank Outdoor Protection Shield Housing 4211
Product No. : SM4211
←[Previous Product]              [Next Product]→
Details:
Aluminum Alloy Road Monitoring Laser Lamp CCTV Surveillance Camera Double Tank Outdoor Protection Shield Housing 4211


Model Number
SM4211
Applications
Indoor, outdoor
Voltage
AC24V±20   AC220V±20  DC12V
Power Consumption
≦65W
Working Temperature
-3565degree
Outline Dimension(mm)
333(L)*220(W)*120(H)
View-finder Size(mm)
φ58×2(can be customized)
Max. Camera Size(mm)
150(L)*70(W)*80(H),150(L)*70(W)*80(H)
Material
Body: aluminum alloy; Lock Catch: stainless steel
Auto Temperature
Control Range
Heating ON:8°±5°, OFF:20°±5° (Fan Off)
Fan ON:37°±5° OFF: 20°±5°
Weight
2.2kg(not including camera)
Protection Level
IP66(when tuyere baffle has been mounted on the tuyere of shield bottom)
Accessories Optional
H:auto heating; S: Auto Fan; K: sun shield; G: optical glass; W: wiper
Matched Bracket
WS2790, WS2770, WT2761, WT301 bracket
