Shenzhen Smartife Technology Co., LTD
10CH H.265+ 5MP HD Seetong 1 Hard Disk NVR Network Video Recorder
Digital Network Monitoring Host

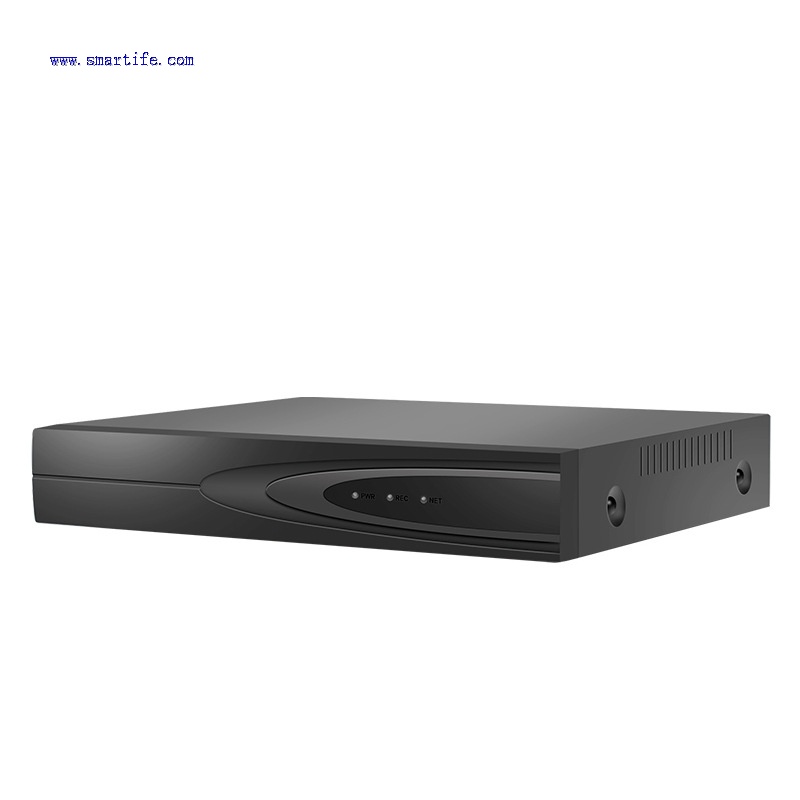

| Product Display |
| Product Features |
Can connect most of network cameras in the market;
Support preview, storage, and playback of 4K high-definition network videos;
Support 265+, H.265, and H.264 encoding front-end adaptive access;
Supports simultaneous output of 1* HD(up to 2K) and 1 * VGA;
Support automatic recording function;
Support multiple smart detection access and linkage, including license plate recognition, facial recognition, area intrusion, boundary detection, fast playback, audio input, etc;
Supports up to 10ch synchronized previews;
Support video query, playback, and backup recording functions;
Supports 1* SATA interface;
Supports up to 4ch synchronous playback;
Support remote cloud upgrade and remote IPC upgrade;
Supports up to 14TB hard disk
| Product Specifications |
|
Product Name |
10CH H.265+ 5MP HD Seetong 1 Hard Disk NVR Network Video Recorder Digital Network Monitoring Host |
|
System Structure |
Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HD display,IP network video access |
|
Video Input |
HD IPC access, each channel support dual stream access, support auto search,add,recording, preview and without debugging |
|
Access bandwidth 64Mbps |
|
|
Video Output |
1channel HD output,1 channel VGA output, homology with HD, Support 3840*2160, 2560*1440,1920*1080,1440*900,1366*768,1280*1024,1280*800,1024*768 resolution output show |
|
Support Seetong client preview, APP preview and seconds connection |
|
|
1/2/4/6/8/9/10 pictures real time preview |
|
|
Video Recording Resolution |
Support 720P/960P/1080P/3MP/4MP/5MP |
|
Video Capacity |
Support H.265+/H.265/H.264 decoding |
|
NVR local recording playback support 2CH (2*5MP); Seetong client recording playback support 2 channels |
|
|
Standard G.711, support audio and video recording, Seetong client audio and video preview and playback |
|
|
Storage |
1*SATA hard disk interface,support 14TB capacity |
|
Support schedule record, motion detection linkage record, alarm linkage record, cross-border record, regional invasion record, license plate record, human face record, human form record, vehicle form record |
|
|
Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup |
|
|
User |
Local maximum support for 38 users |
|
Network Interface |
1*RJ45 Ethernet interface, support 10/100M self-adaption;support TCP/IP, IPv4, DHCP, NTP, RTSP, P2P, SMTP, GB28181 and so on protocols; |
|
Peripheral Interface |
2*USB2.0interface(rear); support for the mouse, USB upgrade |
|
Front Panel |
1* power,1*record,1*network indicator light |
|
Business Functions |
Support preview/recording/forward/remote service, support alarm linkage, support Seetong client remote control software |
|
Working Temperature |
-10 + 55degree C |
|
Working Humidity |
10% ~ 90% |
|
Others |
DC12V/2A power input, hots power consumption: <=2W (No disk), size: 255*210*42mm(W*D*H), weight: 566.7g, support wall hanging |
| Product Detail |
|
| Product Size |
|
| Packing List |
