Item

Parameter

Product Type

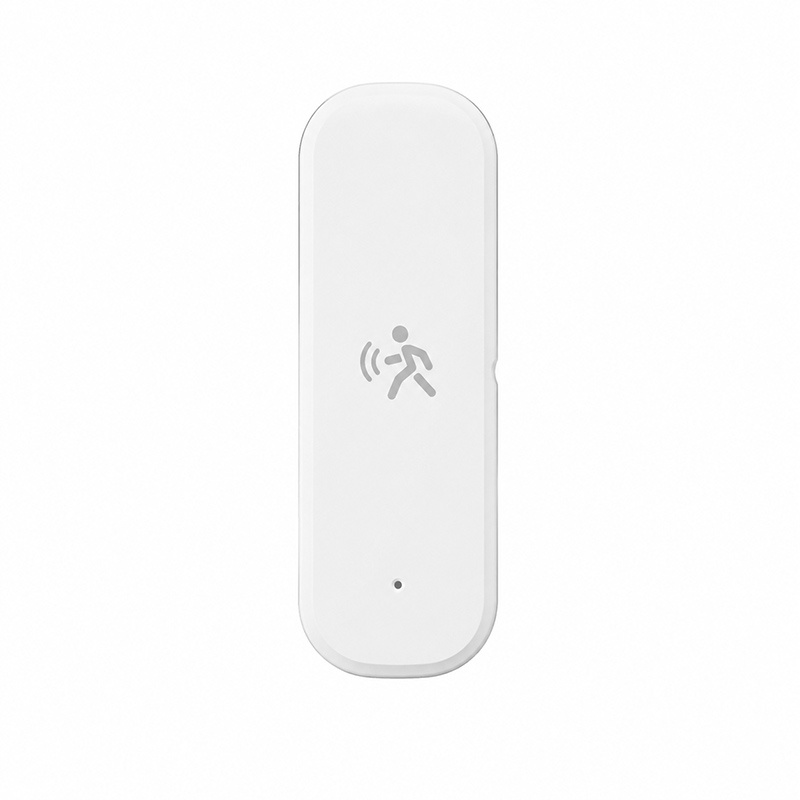

ZigBee 3 IN 1 Human Motion Sensor

Functions

Human Motion Detection / Light Detection / Temperature & Humidity Monitoring

Microwave Frequency

10.525GHz

Detection Distance

0.510m (High sensitivity)0.53m (Low sensitivity)

Detection Angle

110° (Horizontal)

Light Detection Range

024783 Lux

Temperature Detection Range

-10℃ ~ +55℃ (±1℃)

Humidity Detection Range

0% ~ 95% RH (±5% RH)

Wireless Protocol

ZigBee 3.0

Transmission Distance

Up to 100m (open area)

Power Supply

DC 3V (CR123A battery)

Battery Life

Up to 2 years (typical)

Working Temperature

-10℃ ~ +55℃

Working Humidity

≤ 95% RH (no condensation)

Installation

Wallmounted / Topmounted

Dimensions

90 × 28 × 20 mm
