Product Name

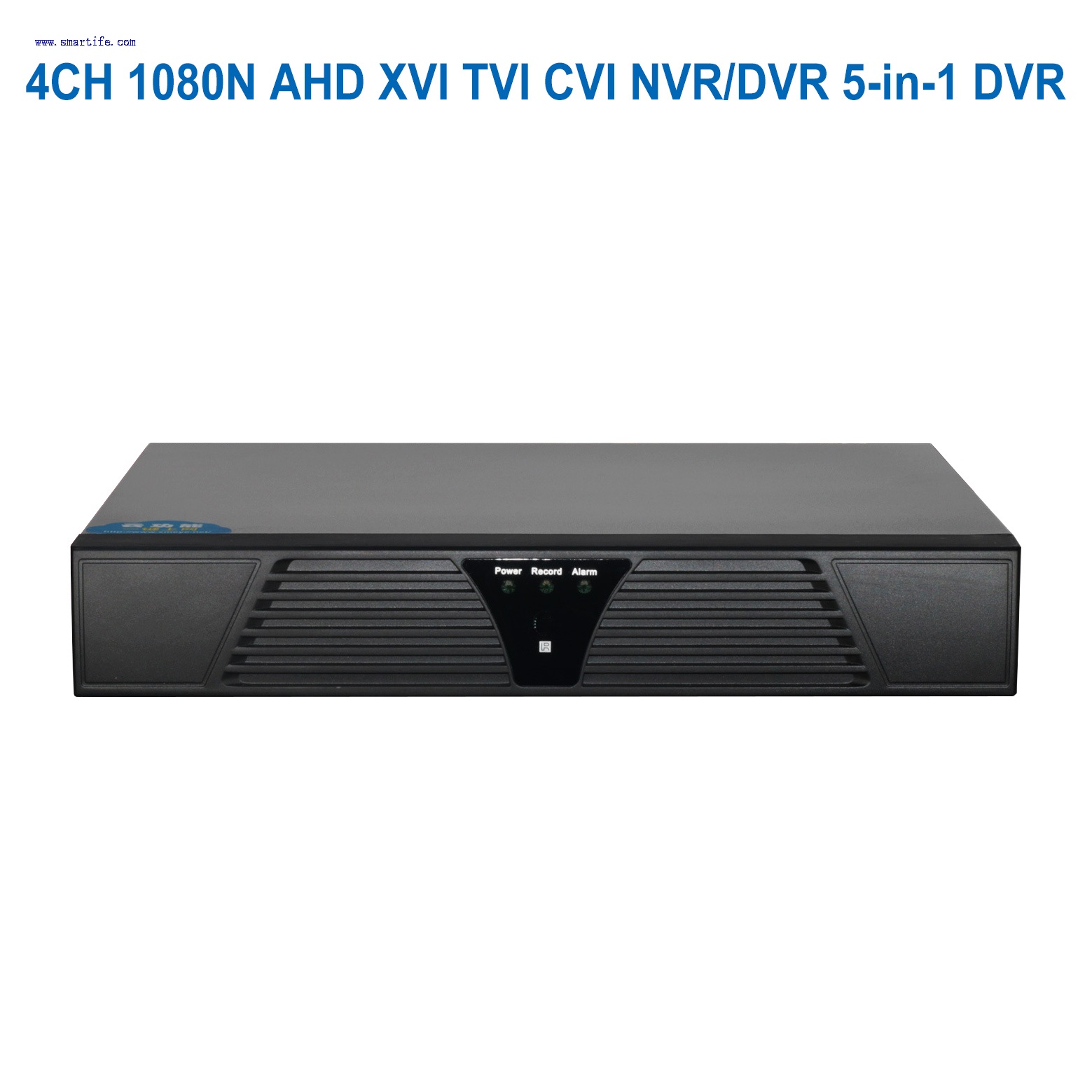

AHD Coaxial HD 4CH 1080P TVI CVI Digital NVR 5 in 1  HD Output DVR Monitoring Host

Model Number

SM-5I1XVR402

System

Main Processor

Industrial Grade Embedded Chip: Hi3520D

Operating System

Embedded Linux OS

Video

Video Compression Format

H.264(High Profile)

Coding Capacity

4*AHD-NH(1080N)@12FPS

Video Input

Local: 4*AHD-NH; 4*Analogue; 4*TVI; 4*CVI

Local Mixture: AHD-NH; TVI; CVI; no need grouping for analogue, arbitrary combination

Mixture between Local and Network:

2*AHD-M + 2*Network(720P)

Pure Network: 8*1080P; 8*720P

Audio

Audio Compression

G.711A

Recording Management

Recording Way

Manual>Alarm>Motion Detection>Timing

Recording Playback

4CH(Pure AHD Input Mode)

Backup Way

Network, USB Mobile Hard-disk, SATA Recording

Interface

Video Interface

Video Input: 4CH BNC; Video Output: 1CH VGA, 1CH HD

Audio Interface

Audio Input: 4CH RCA; Audio Output: 1CH RCA

Network Interface

1*RJ45 10M/100M Self-adaptive Ethernet Interface

PTZ Control

1*RS485, Support multiple PTZ protocol

USB Interface

2*USB Interface

Hard-disk Interface

1*SATA Interface(Support 6TB Max.)

Others

Power Supply

DC12V/2A

Size

255*225*45mm

Weight

<=2kg(Including packaging and accessories)
