Product Name

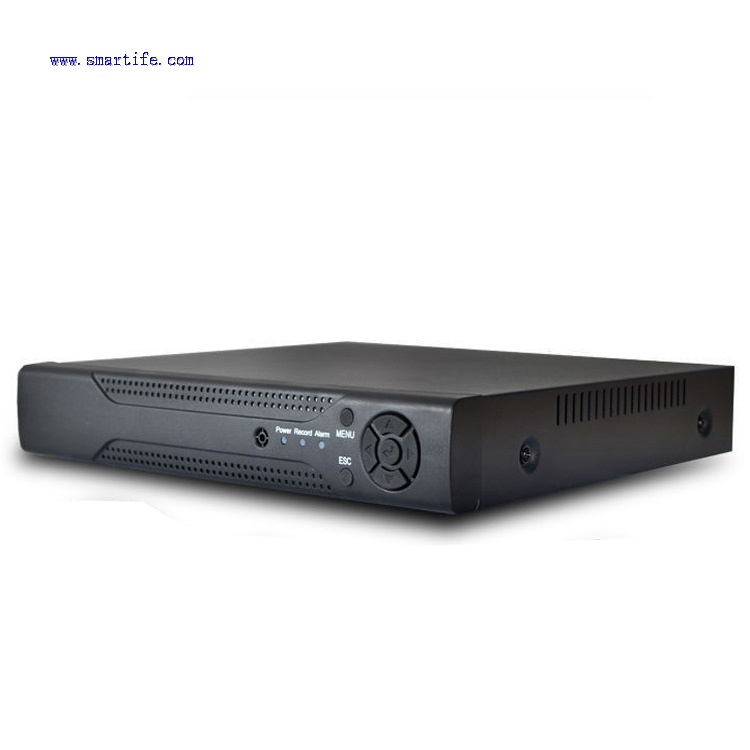

1080N 8CH HD 5in1 AHD TVI CVI CVBS IPC Output Analogue Embedded DVR Monitoring Host XVR Digital Video Recorder

Model Number

SM-5I1XVR801

System

Main Processor

Industrial Grade Embedded Chip: Hi3520D V300

Video

Video Compression Format

H.264

Monitoring Quality

VGA; HD

Coding Ability

8*1080N@12fps/4*1080P@15fps

Multi-mode Input

Analogue: 8*1080N; 4*1080P

Mixture: 2*1080N(Analog)+2*1080P(Network); 4*1080N(Analog)+4*960P(Network)

Pure Network: 16*1080P, 9*1080P, 16*960P, 4*5M

Audio

Audio Compression

G.711A

Voice Talkback

Support

Recording & Playback

Recording Way

Manual>Alarm>Motion Detection>Timing

Local Playback

8CH(Pure Local Input Mode)

Storage

Recording Storage

Local Hard-disk, Network

Interface

Video Input

8CH BNC

Video Output

1*VGA, 1*HD

Audio I/O

4(Can be extended to 8CH)/1

Network Interface

RJ45 10M/100M Self-adaptive Ethernet Interface

PTZ Control

1*RS485, Support multiple PTZ protocol

USB Interface

2*USB Interface

Hard-disk Interface

2*SATA Interface

Wireless Interface

3G, WIFI(Extended by USB)

Others

Power Supply

DC12V/2A

Power Consumption

<15W(without Hard-disk)

Working Temperature

0degree C ~ 55degree C

Humidity

10% ~ 90%

Hard-disk Capacity

Support 1TB, 2TB, 3TB, 4TB

Size

255*210*45mm
